Capacity: 2-10t/h
Output size: 50-100mm

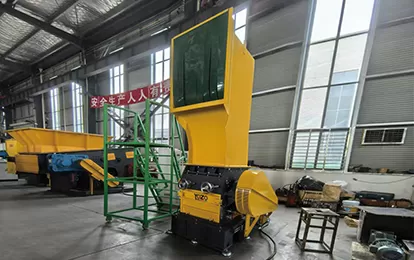

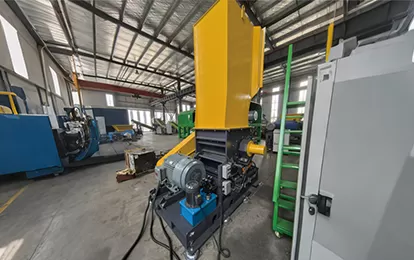

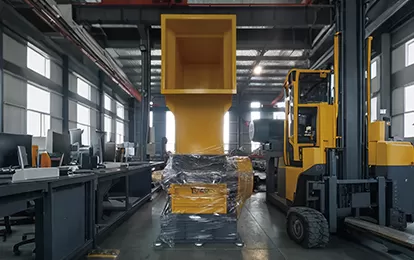

YZ-CH series crusher is designed for processing non-metallic materials such as low-hardness, fragile, and moderately tough plastic and rubber products, including waste materials like PP, PE, PET, PVC, etc. It is a high-efficiency,high-torque, low energy consumption, low-noise equipment for material processing in recycling applications.
Before processing
After processing
Before processing
After processing
Before processing
After processing
Before processing
After processing
Before processing
After processing
Before processing
After processing
Good wear resistance, long service life, and strong crushing performance
The wear-resistant enclosure design can easily handle various complex situations.
The screen size can be customized according to the output requirements. The unique opening arrangement prevents material blockage.
High-strength alloy steel, surface-strengthened, high torque transmission, impact resistance, and high stability.
| Model | YZ-CH500/600 | YZ-CH600/800 | YZ-CH500/1000 | YZ-CH700/1000 | YZ-CH800/1200 |
| Feeding Port（W×D mm） | 650*620 | 800*700 | 1000*650 | 1000*820 | 1200*920 |
| Power（kw） | 55 | 75 | 75 | 90 | 132 |
| Moving Blades | 5×2 | 5×2 | 5×2 | 7×2 | 7×2 |
| Screen Size | ¢8-¢20 | ¢8-¢20 | ¢8-¢20 | ¢8-¢20 | ¢8-¢20 |
| Weight | 3T | 4T | 6T | 8T | 10T |
Note: Technical specifications may change without prior notice due to ongoing technological advancements.
