Capacity: 2-10t/h
Output size: 50-100mm

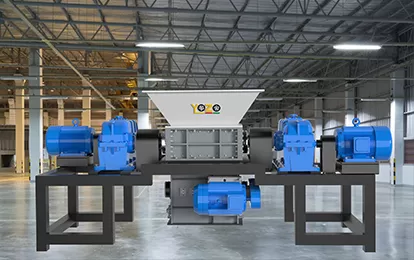

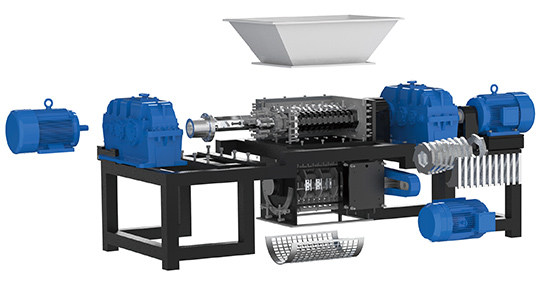

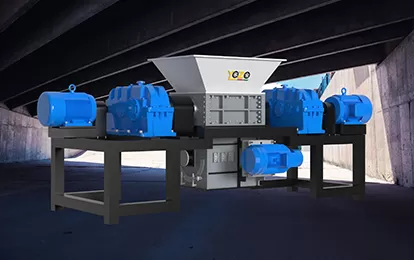

The YZ-SG Series integrates a dual-shaft shredder and a granulator into a single, efficient unit. It processes large volumes in a two-stage operation: first reducing bulky items into irregular fragments above 30mm, then immediately granulating them into consistent 10mm granules, ready to meet your specific requirements for seamless integration and automated operation.

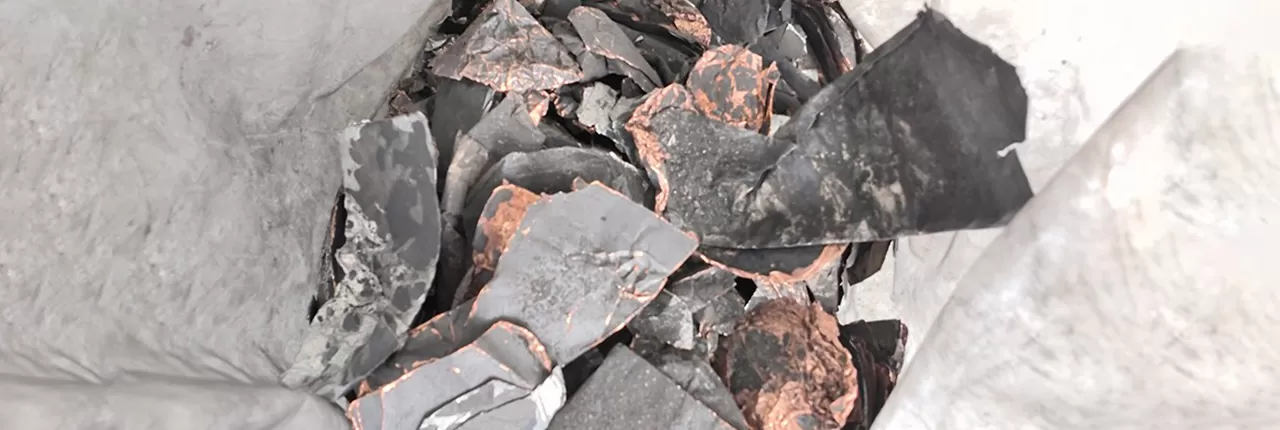

Before processing
After processing
Before processing
After processing
Before processing
After processing
Before processing
After processing
Before processing
After processing
Before processing
After processing
| Model | Cutting Chamber | Power | Blade Dia | Blade Thickness | Blades Qty |
| YZ-SG0608 | 800*600 | 22x2+15 | Φ300 | 30 | 26 |
| YZ-SG0810 | 1000*800 | 30×2+22 | Φ500 | 40 | 24 |
| YZ-SG1114 | 1400*1100 | 90×2+37 | Φ550 | 50 | 28 |
| YZ-SG1216 | 1600*1200 | 132×2+75 | Φ600 | 60 | 26 |
| YZ-SG1318 | 1800*1300 | 200×2+90 | Φ650 | 60 | 30 |
Note: Technical specifications may change without prior notice due to ongoing technological advancements.
