Capacity: 1-10t/h
Output size: 50-100mm

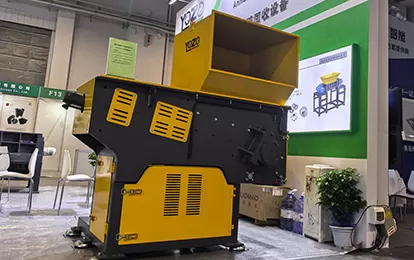

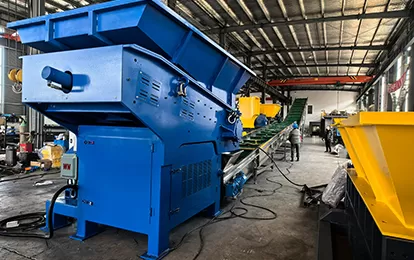

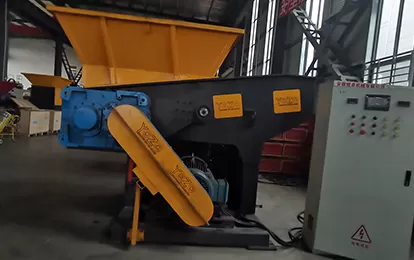

The YZ-SH Series Single-Shaft Shredder delivers industrial-grade performance for the size reduction and recycling of a wide range of small to medium-sized materials. It efficiently processes diverse solid wastes—including plastic film, wood, rubber, plastic lumps, and high-hardness substances like PVC—with controlled output sizing achieved through an interchangeable screen.
Before processing
After processing
Before processing
After processing
Before processing
After processing
Before processing
After processing
Before processing
After processing
Before processing
After processing
The screen size can be customized according to the output requirements. The unique opening arrangement prevents material blockage.

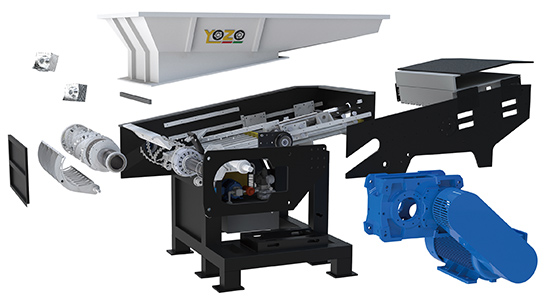

Modular design: flexible replacement and maintenance; safety and anti-loosening design.
High-strength alloy steel, surface-strengthened, high torque transmission, impact resistant
Independent blade design, quick-release system
| Model | YZ-SH800/350 | YZ-SH1000/450 | YZ-SH1200/450 | YZ-SH1400/500 | YZ-SH1800/500 |
| Motor Power（kw） | 37kw×1 | 55kw×1 | 75kw×1 | 90kw×1 | 110kw×1 |
| Rotor Dia.（mm) | Φ300mm | Φ400mm | Φ400mm | Φ460mm | Φ500mm |
| Mvoing Bales | 51 | 63 | 81 | 99 | 105 |
| Screen | Φ30～100mm | Φ30～100mm | Φ30～100mm | Φ30～100mm | Φ30～100mm |
| Weight | 3.5t | 6t | 7t | 8.5t | 10t |
Note: Technical specifications may change without prior notice due to ongoing technological advancements.
